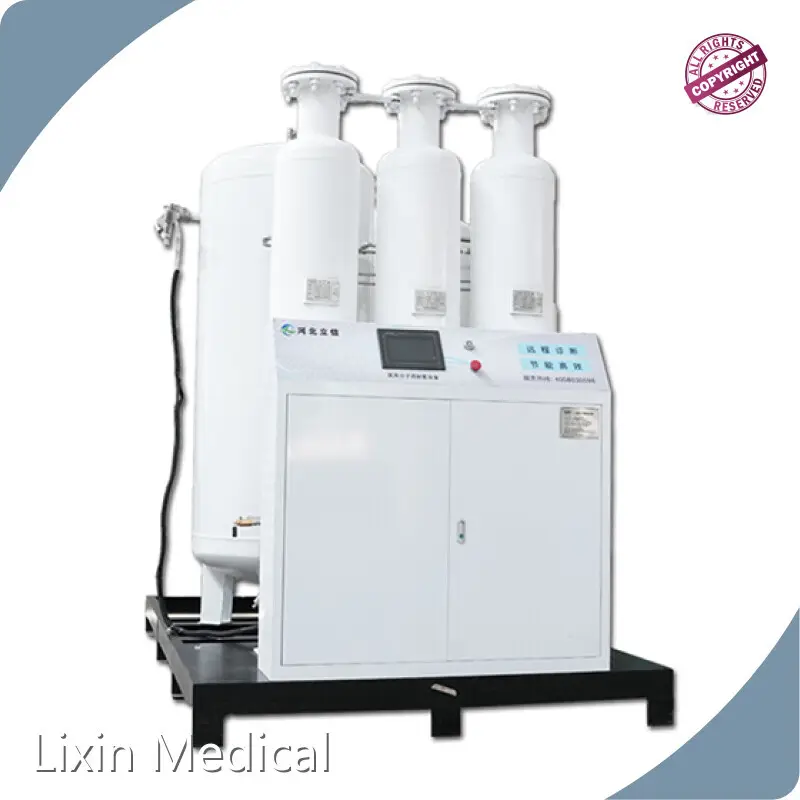

Oxygen Generator 45 Days Upon Receipt the 30% Deposit by Lixin Medical
Product details of the oxygen generator
Product Information
Lixin Medical has been focusing on the design of oxygen generator to follow the trend in the market. With many international certifications, the quality of the product is assured. By applying technical method to improve the quality level of oxygen generator, Lixin Medical has made a breakthrough progress.
Product Parameters
| NO. | specification | specification(Nm3/h) | Oxygenpurity%(V/V) | Outputpressure(MPa) | Ratedpower(kW) | Sickbeds |
| 1 | LXZY-1 | 1 | ≥90%(V/V) | 0.3-0.8MPa(adjustable) | ≤5 | ≈20 |
| 2 | LXZY-3.5 | 3.5 | ≤6.5 | ≈100 | ||
| 3 | LXZY-5 | 5 | ≤10 | ≈150 | ||
| 4 | LXZY-7.5 | 7.5 | ≤13 | ≈240 | ||
| 5 | LXZY-10 | 10 | ≤16.5 | ≈300 | ||
| 6 | LXZY-15 | 15 | ≤20 | ≈450 | ||
| 7 | LXZY-20 | 20 | ≤28 | ≈600 | ||
| 8 | LXZY-30 | 30 | ≤40 | ≈850 | ||
| 9 | LXZY-40 | 40 | ≤58 | ≈1200 | ||
| 10 | LXZY-50 | 50 | ≤78 | ≈1500 | ||
| 11 | LXZY-60 | 60 | ≤98 | ≈1800 | ||
| 12 | LXZY-80 | 80 | ≤120 | ≈2300 | ||
| 13 | LXZY-100 | 100 | ≤145 | ≈3000 |
Remarks:
1. The working environment temperature of this device is 5-40 ℃.
2. Applicable beds are provided for reference only. lf there are any changes to the data, the actual data provided shall prevail.
3. The installation environment and site are indoor explosion-proof areas, with an ambient temperature of ≤45 ℃ and good ventilation conditions.
4. system installation power supply conditions: 220/380v, 50HZ, when the oxygen pressure requirement is higher than 0.5MPa, itcan be pressurized to the user's desired pressure.
5. The installed power in the table refers to the total power of the entire machine, with additional required power.
6. The operating noise of the system can be maintained at about 85 points.
Working Process
Application Area
Certificate Of Company
Company Advantage
• Lixin Medical is rich in manufacturing experience of Medical oxygen concentrator,micro hyperbaric oxygen chamber,operating room purification project,central oxygen supply project. We can provide customers with quality products and excellent custom services according to customers' diverse needs.
• Lixin Medical has a dedicated and diligent senior management team and a large number of professional technical personnel. All this makes favorable conditions for company development.
• Our company is located in a position with pleasant surroundings and convenient traffic. And the outward transportation of products is convenient based on that.
• Lixin Medical's Medical oxygen concentrator,micro hyperbaric oxygen chamber,operating room purification project,central oxygen supply project are stable in performance and simple in operation. They are high-quality and reasonably-priced with multiple specifications.
• Our company adheres to the combination of domestic sales and foreign trade, and the product sales range covers the whole world.
Lixin Medical is always here waiting for you.
