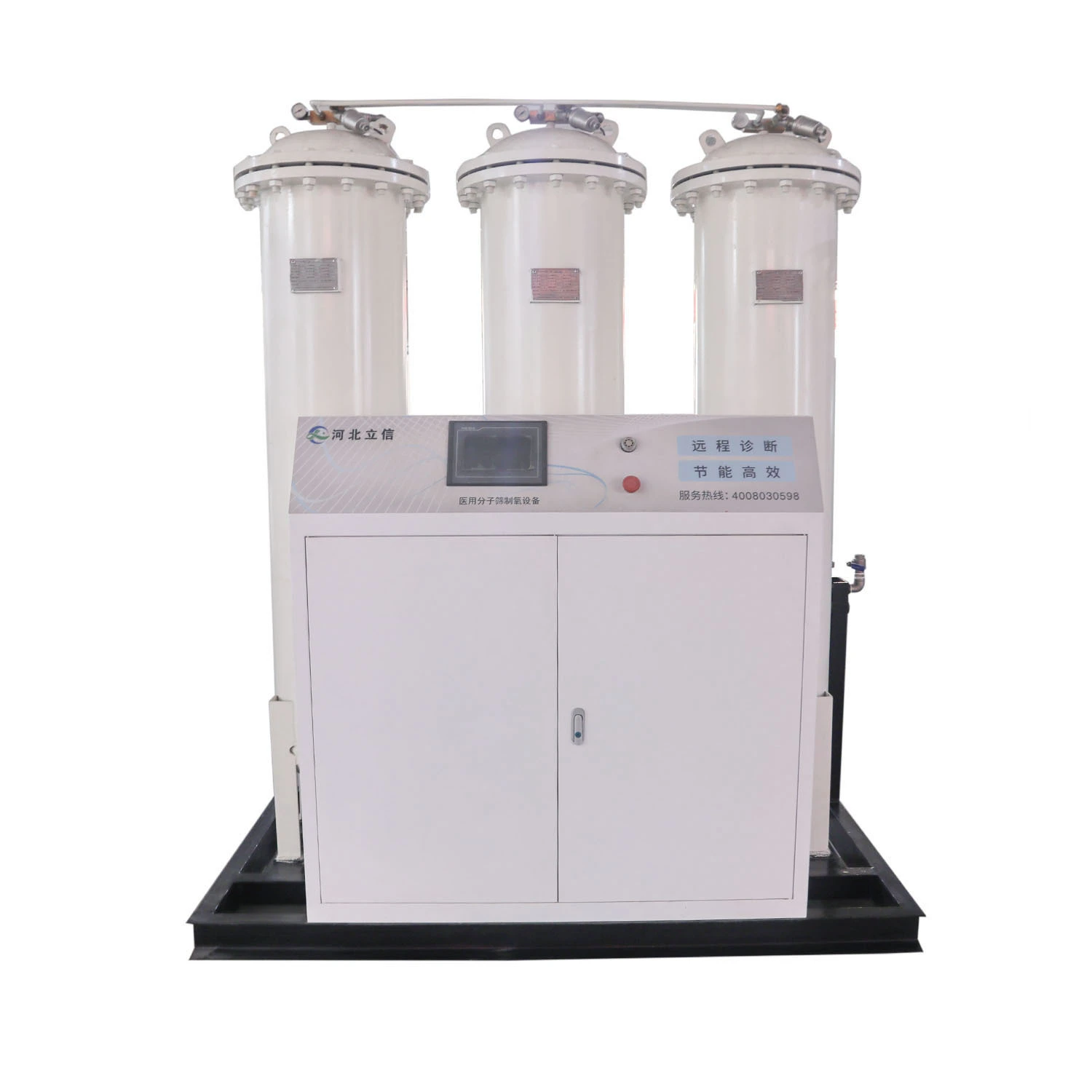

40 cubic meters PSA Medical Oxygen Concentrator
PSA oxygen generator is based on air as raw material, the use of pressure swing adsorption technology, the use of zeolite molecular sieve in the pressurized state of nitrogen adsorption capacity reduction, the formation of pressure adsorption, decompression desorption cycle process, to achieve the separation of oxygen and nitrogen in the air to produce oxygen. Pressure swing adsorption oxygen production is a physical adsorption process, so it is very safe and no environmental pollution.
5.0
MOQ:
1
payment:
30% deposit, pay 70% before shipping by T/T
Delivery time:
45 days upon receipt the 30% deposit
Start Port:
Tianjin
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
| NO. | specification | specification (Nm3/h) |
Oxygenpurity %(V/V) |
Outputpressure (MPa) |
Ratedpower (kW) |
Sickbeds |
| 1 | LXZY-1 | 1 | ≥90%(V/V) | 0.3-0.8MPa (adjustable) |
≤5 | ≈20 |
| 2 | LXZY-3.5 | 3.5 | ≤6.5 | ≈100 | ||
| 3 | LXZY-5 | 5 | ≤10 | ≈150 | ||
| 4 | LXZY-7.5 | 7.5 | ≤13 | ≈240 | ||
| 5 | LXZY-10 | 10 | ≤16.5 | ≈300 | ||
| 6 | LXZY-15 | 15 | ≤20 | ≈450 | ||
| 7 | LXZY-20 | 20 | ≤28 | ≈600 | ||
| 8 | LXZY-30 | 30 | ≤40 | ≈850 | ||
| 9 | LXZY-40 | 40 | ≤58 | ≈1200 | ||
| 10 | LXZY-50 | 50 | ≤78 | ≈1500 | ||
| 11 | LXZY-60 | 60 | ≤98 | ≈1800 | ||
| 12 | LXZY-80 | 80 | ≤120 | ≈2300 | ||
| 13 | LXZY-100 | 100 | ≤145 | ≈3000 |
Product Advantages
01
The main components are imported with original packaging to ensure product quality.
02
The oxygen production process adopts PLC control, fully automatic operation, and the oxygen flow output is adjustable
03
Completely oil-free design (customized according to customer needs), stable concentration, safe and reliable quality
04
Alarm for abnormal parameters to ensure oxygen quality and reliable operation.
05
Adopting a three-phase 380V (customized according to the customer's area) low-voltage power supply, low noise, and low energy consumption.
06
High system integration, small footprint, and convenient transportation.
07
It can be directly connected to the oxygen supply pipeline system, making it convenient and flexible to use.
Application Area
The high-altitude integrated oxygen concentrator has a wide range of applications, and can be used in small and medium-sized hospitals, clinics, health stations, etc. in cities, rural areas, remote areas, mountainous areas, and other high-altitude areas. It is also suitable for other oxygen consuming places such as sanatoriums, sports training centers, oxygen bars, etc.
