Medical Oxygen Machine Tianjin - - Lixin Medical

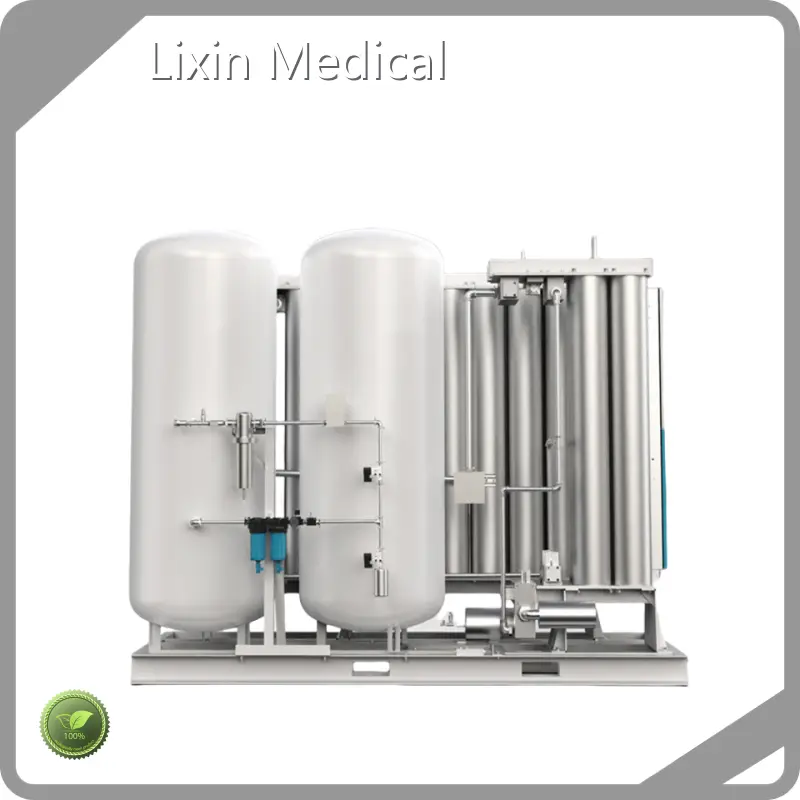

Product details of the medical oxygen machine
Product Description
Lixin Medical medical oxygen machine features an assortment of stunning design styles. The product is strictly checked by QC team for many rounds to make sure no quality problems. The product adapts to market need and is widely used at home and abroad.
Product Parameters
| No. | Specification | OxygenVolume(Nm²/h) | Oxygenpurity%(V/v) | OutputpressureMPa | RatedpowerkW | Sickbeds |
| 1 | LXZY-1 | 1 | 0.3-0.8MPa(adjustable) | ≤5 | =20 | |
| 2 | LXZY-3.5 | 3.5 | ≤6.5 | =100 | ||
| 3 | LXZY-5 | 5 | ≤10 | 150 | ||
| 4 | LXZY-7.5 | 7.5 | ≤13 | =240 | ||
| 5 | LXZY-10 | 10 | ≤16.5 | =300 | ||
| 6 | LXZY-15 | 15 | ≤20 | 450 | ||
| 7 | LXZY-20 | 20 | ≥90%(V/V) | ≤28 | =600 | |
| 8 | LXZY-30 | 30 | ≤40 | 850 | ||
| 9 | LXZY-40 | 40 | ≤58 | 1200 | ||
| 10 | LXZY-50 | 50 | ≤78 | 1500 | ||
| 11 | LXZY-60 | 60 | ≤98 | 1800 | ||
| 12 | LXZY-80 | 80 | ≤120 | 2300 | ||
| 13 | LXZY-100 | 100 | ≤145 | 3000 |
Remarks:
1. The working environment temperature of this device is 5-40 °C.
2. Applicable beds are provided for reference only. If there are any changes to the data, the actual data provided shall prevail.
3. The installation environment and site are indoor explosion-proof areas, with an ambient temperature of ≤ 45 °C and good ventilationconditions.
4. System installation power supply conditions: 220/380V, 50HZ, when the oxygen pressure requirement is higher than 0.5MPa, it can bepressurized to the user's desired pressure.
5. The installed power in the table refers to the total power of the entire machine, with additional required power.
6. The operating noise of the system can be maintained at about 85 points.
Product Introduction
PSA oxygen generator is based on air as raw material, the use of pressure swing adsorption technology, the use of zeolite molecular sieve in the pressurized state of nitrogen adsorption capacity reduction, the formation of pressure adsorption, decompression desorption cycle process, to achieve the separation of oxygen and nitrogen in the air to produce oxygen.Pressure swing adsorption oxygen production is a physical adsorption process, so it is very safe and no environmental pollution.
Product Floor Plan
The constitution of PSA oxygen generator system
