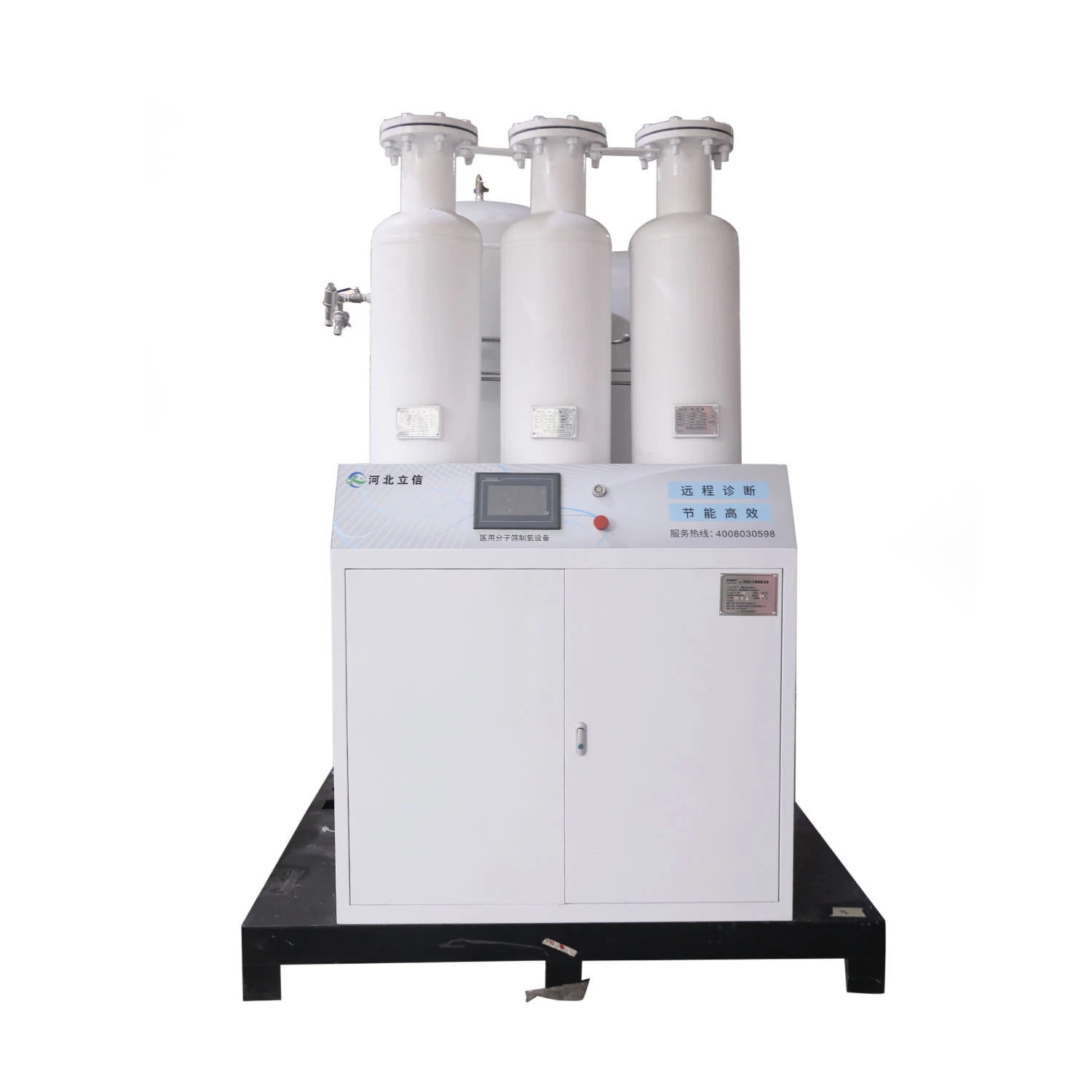

50 cubic meters Hospital oxygen concentrator
Medical oxygen concentrators mainly use molecular sieve adsorption technology or PSA (Pressure Swing Absorption) technology to separate oxygen from the air. This technology has the characteristics of low energy consumption and high efficiency, and can provide stable and continuous oxygen supply to patients.
Product Parameters
| NO. | specification | specification (Nm3/h) |
Oxygenpurity %(V/V) |
Outputpressure (MPa) |
Ratedpower (kW) |
Sickbeds |
| 1 | LXZY-1 | 1 | ≥90%(V/V) | 0.3-0.8MPa (adjustable) |
≤5 | ≈20 |
| 2 | LXZY-3.5 | 3.5 | ≤6.5 | ≈100 | ||
| 3 | LXZY-5 | 5 | ≤10 | ≈150 | ||
| 4 | LXZY-7.5 | 7.5 | ≤13 | ≈240 | ||
| 5 | LXZY-10 | 10 | ≤16.5 | ≈300 | ||
| 6 | LXZY-15 | 15 | ≤20 | ≈450 | ||
| 7 | LXZY-20 | 20 | ≤28 | ≈600 | ||
| 8 | LXZY-30 | 30 | ≤40 | ≈850 | ||
| 9 | LXZY-40 | 40 | ≤58 | ≈1200 | ||
| 10 | LXZY-50 | 50 | ≤78 | ≈1500 | ||
| 11 | LXZY-60 | 60 | ≤98 | ≈1800 | ||
| 12 | LXZY-80 | 80 | ≤120 | ≈2300 | ||
| 13 | LXZY-100 | 100 | ≤145 | ≈3000 |
How to choose a medical oxygen concentrator?
Performance parameters of medical oxygen concentrators
1. Oxygen production: The oxygen production of medical oxygen concentrators is usually measured in liters per minute (LPM). When choosing, the required oxygen production should be determined based on the patient's needs and the doctor's advice.
2. Oxygen purity: The oxygen produced by medical oxygen concentrators should have a purity of over 90% to ensure treatment effectiveness.
3. Noise level: Medical oxygen concentrators produce a certain amount of noise during operation, and the selection should consider the noise level to avoid affecting the patient's rest.
4. Energy consumption and electricity demand: The energy consumption and electricity demand of medical oxygen concentrators are also factors that need to be considered when selecting to ensure their normal use in households or medical institutions.
Product Floor Plan
Application Area
Certificate Of Company
