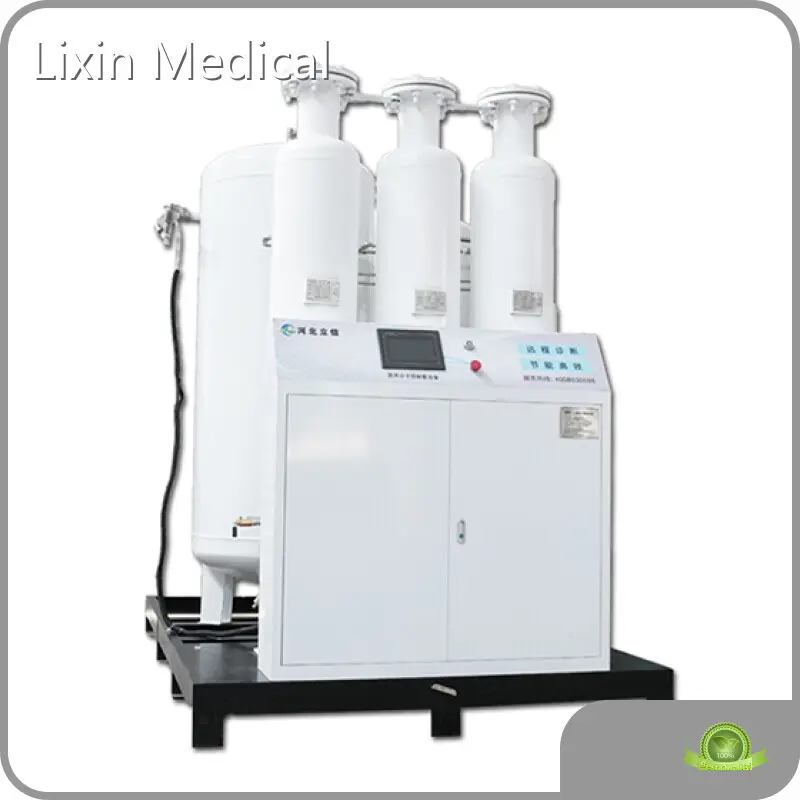

Product details of the industrial oxygen generator manufacturers
Product Description
industrial oxygen generator manufacturers achieves excellent levels of detail. Each product has been tested strictly before package according to the requirements of quality management system. The driving force of this product's development comes from the huge market demand in the industry.
Product Parameters
| NO. | specification | specification(Nm3/h) | Oxygenpurity%(V/V) | Outputpressure(MPa) | Ratedpower(kW) | Sickbeds |
| 1 | LXZY-1 | 1 | ≥90%(V/V) | 0.3-0.8MPa(adjustable) | ≤5 | ≈20 |
| 2 | LXZY-3.5 | 3.5 | ≤6.5 | ≈100 | ||
| 3 | LXZY-5 | 5 | ≤10 | ≈150 | ||
| 4 | LXZY-7.5 | 7.5 | ≤13 | ≈240 | ||
| 5 | LXZY-10 | 10 | ≤16.5 | ≈300 | ||
| 6 | LXZY-15 | 15 | ≤20 | ≈450 | ||
| 7 | LXZY-20 | 20 | ≤28 | ≈600 | ||
| 8 | LXZY-30 | 30 | ≤40 | ≈850 | ||
| 9 | LXZY-40 | 40 | ≤58 | ≈1200 | ||
| 10 | LXZY-50 | 50 | ≤78 | ≈1500 | ||
| 11 | LXZY-60 | 60 | ≤98 | ≈1800 | ||
| 12 | LXZY-80 | 80 | ≤120 | ≈2300 | ||
| 13 | LXZY-100 | 100 | ≤145 | ≈3000 |
Remarks:
1. The working environment temperature of this device is 5-40 ℃.
2. Applicable beds are provided for reference only. lf there are any changes to the data, the actual data provided shall prevail.
3. The installation environment and site are indoor explosion-proof areas, with an ambient temperature of ≤45 ℃ and good ventilation conditions.
4. system installation power supply conditions: 220/380v, 50HZ, when the oxygen pressure requirement is higher than 0.5MPa, itcan be pressurized to the user's desired pressure.
5. The installed power in the table refers to the total power of the entire machine, with additional required power.
6. The operating noise of the system can be maintained at about 85 points.
Working Process
Application Area
Certificate Of Company
Company Feature
• We always insist on providing customers with good products and sound after-sales service.
• Lixin Medical's Medical oxygen concentrator,micro hyperbaric oxygen chamber,operating room purification project,central oxygen supply project are stable in performance and simple in operation. They are high-quality and reasonably-priced with multiple specifications.
• Lixin Medical has a professional technical team and an experienced marketing team to promote the production and sales of products.
• Lixin Medical's products are not only sold well in China but also exported to Southeast Asia, Africa, and other foreign countries. They are highly praised by local consumers.
• Our company has obvious geographical location advantages, so the transportation is very convenient.
Thanks for visiting. Is there anything Lixin Medical could help you?
